D40 EMERGENCY STOP TTR HEAD
Special Price
IDR140,910.00
IDR140,910.00
Regular Price
IDR269,860.00
Out of stock
SKU
XB4BS8442
PRE ORDER
Duration Pre-Order :
Duration Pre-Order :

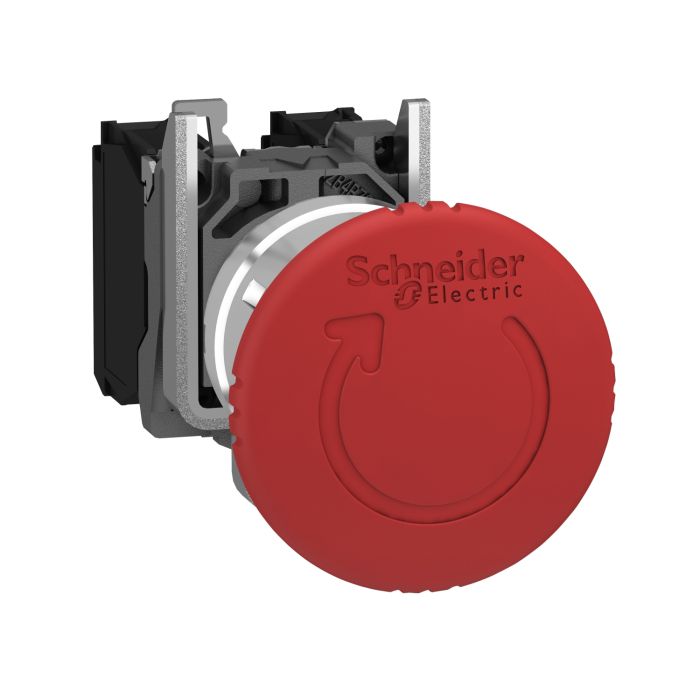

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
| SKU | XB4BS8442 |
|---|---|
| connections - terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| contacts type and composition | 1 NC |
| sale per indivisible quantity | 1 |
| range of product | Harmony XB4 |
| bezel material | chromium plated metal |
| contact operation | slow-break |
| operator profile | red mushroom Ø 40 mm, unmarked |
| mounting diameter | 22 mm |
| type of operator | trigger action and mechanical latching |
| product or component type | emergency stop push-button, emergency switching off push-button |
| shape of signaling unit head | round |
| device short name | XB4 |
| fixing collar material | zamak |
| head type | standard |
| reset | turn to release |
